Axial fans

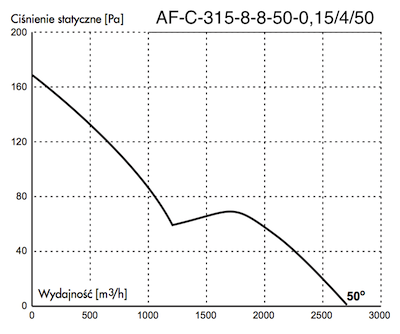

AF-C-315-8-8-50-0,15/4/50 (230V)

Model	AF-C-315-8-8-50-0,15/4/50 (230V)
Rotational speed	1350 rpm
Performance	2730 m3/h
Power	0,15 kW
Current	1,3 A
IP	66
Max. operating temperature	60 °C
Weight	17 kg
Acoustic pressure SPL	59 dB(A)
Acoustic power Lw	70 dB(A)
Type of regulator	SPA-3
Net price	257 €

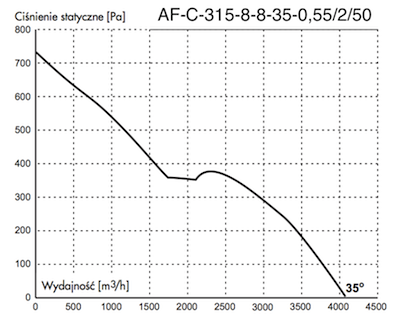

AF-C-315-8-8-35-0,55/2/50

Model	AF-C-315-8-8-35-0,55/2/50
Rotational speed	2800 rpm
Performance	4050 m3/h
Power	0,55 kW
Current	1,4 A
IP	66
Max. operating temperature	60 °C
Mass	17 kg
Acoustic pressure SPL	67 dB(A)
Acoustic power Lw	78 dB(A)
Type of regulator	FT-2,1 / FJ-3,5
Net price	255 €

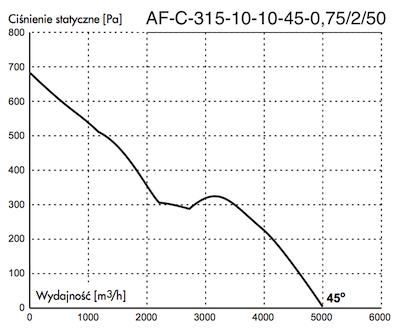

AF-C-315-10-10-45-0,75/2/50

Model	AF-C-315-10-10-45-0,75/2/50
Rotational speed	2800 rpm
Performance	4990 m3/h
Power	0,75 kW
Current	1,8 A
IP	66
Max. operating temperature	60 °C
Mass	20 kg
Acoustic pressure SPL	72 dB(A)
Acoustic power Lw	83 dB(A)
Type of regulator	FT-2,1 / FJ-3,5
Net price	273 €

AF-C-355-10-10-45-0,15/4/50 (230V)

Model	AF-C-355-10-10-45-0,15/4/50 (230V)
Rotational speed	1350 rpm
Performance	3470 m3/h
Power	0,15 kW
Current	1,3 A
IP	66
Max. operating temperature	60 °C
Mass	20 kg
Acoustic pressure SPL	60 dB(A)
Acoustic power Lw	71 dB(A)
Type of regulator	SPA-3
Net price	278 €

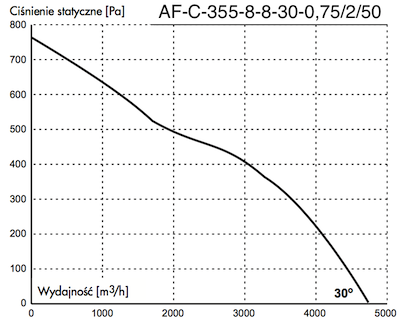

AF-C-355-8-8-30-0,75/2/50

Model	AF-C-355-8-8-30-0,75/2/50
Rotational speed	2800 rpm
Performance	4520 m3/h
Power	0,75 kW
Current	1,8 A
IP	66
Max. operating temperature	60 °C
Mass	20 kg
Acoustic pressure SPL	67 dB(A)
Acoustic power Lw	78 dB(A)
Type of regulator	FT-1,9 / FJ-3,5
Net price	267 €

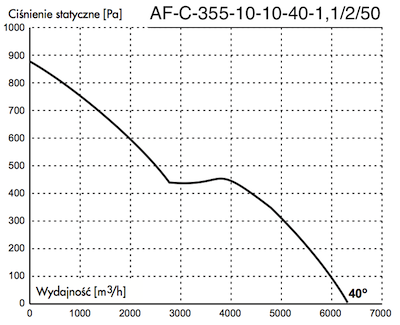

AF-C-355-10-10-40-1,1/2/50

Model	AF-C-355-10-10-40-1,1/2/50
Rotational speed	2800 rpm
Performance	6440 m3/h
Power	1,1 kW
Current	2,5 A
IP	66
Max. operating temperature	60 °C
Mass	23 kg
Acoustic pressure SPL	73 dB(A)
Acoustic power Lw	84 dB(A)
Type of regulator	FT-4,1 / FJ-6,0
Net price	290 €

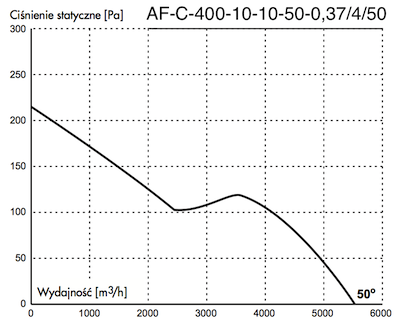

AF-C-400-10-10-50-0,37/4/50 (230V)

Model	AF-C-400-10-10-50-0,37/4/50 (230V)
Rotational speed	1350 rpm
Performance	5530 m3/h
Power	0,37 kW
Current	2,8 A
IP	66
Max. operating temperature	60 °C
Mass	23 kg
Acoustic pressure SPL	66 dB(A)
Acoustic power Lw	77 dB(A)
Type of regulator	SPA-3
Net price	284 €

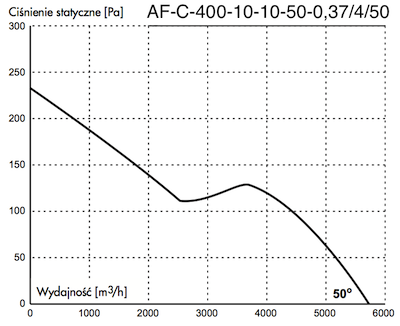

AF-C-400-10-10-50-0,37/4/50

Model	AF-C-400-10-10-50-0,37/4/50
Rotational speed	1400 rpm
Performance	5730 m3/h
Power	0,37 kW
Current	1,2 A
IP	66
Max. operating temperature	60 °C
Mass	22 kg
Acoustic pressure SPL	66 dB(A)
Acoustic power Lw	77 dB(A)
Type of regulator	FT-1,2 / FJ-3,5
Net price	275 €

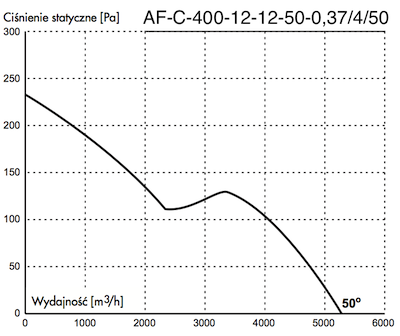

AF-C-400-12-12-50-0,37/4/50 (230V)

Model	AF-C-400-12-12-50-0,37/4/50 (230V)
Rotational speed	1350 rpm
Performance	5320 m3/h
Power	0,37 kW
Current	208 A
IP	66
Max. operating temperature	60 °C
Mass	22 kg
Acoustic pressure SPL	65 dB(A)
Acoustic power Lw	76 dB(A)
Type of regulator	SPA-3
Net price	289 €

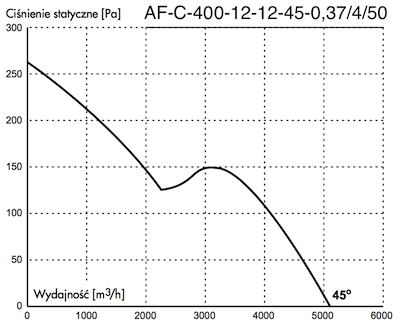

AF-C-400-12-12-45-0,37/4/50

Model	AF-C-400-12-12-45-0,37/4/50
Rotational speed	1400 rpm
Performance	5110 m3/h
Power	0,37 kW
Current	1,2 A
IP	66
Max. operating temperature	60 °C
Mass	23 kg
Acoustic pressure SPL	64 dB(A)
Acoustic power Lw	75 dB(A)
Type of regulator	FT-1,2 / FJ-3,5
Net price	280 €

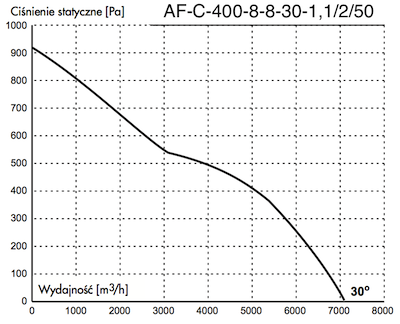

AF-C-400-8-8-30-1,1/2/50

Model	AF-C-400-8-8-30-1,1/2/50
Rotational speed	2800 rpm
Performance	7120 m3/h
Power	1,1 kW
Current	2,5 A
IP	66
Max. operating temperature	60 °C
Mass	25 kg
Acoustic pressure SPL	71 dB(A)
Acoustic power Lw	82 dB(A)
Type of regulator	FT-4,1 / FJ-6,0
Net price	282 €

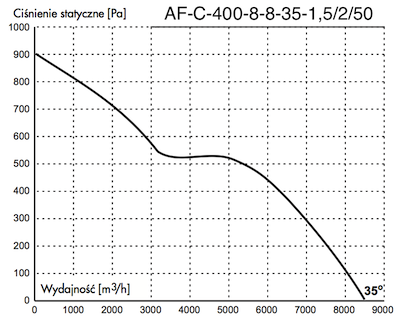

AF-C-400-8-8-35-1,5/2/50

Model	AF-C-400-8-8-35-1,5/2/50
Rotational speed	2800 rpm
Performance	8520 m3/h
Power	1,5 kW
Current	3,3 A
IP	66
Max. operating temperature	60 °C
Mass	24 kg
Acoustic pressure SPL	75 dB(A)
Acoustic power Lw	86 dB(A)
Type of regulator	FT-4,1 / FJ-6,0
Net price	300 €

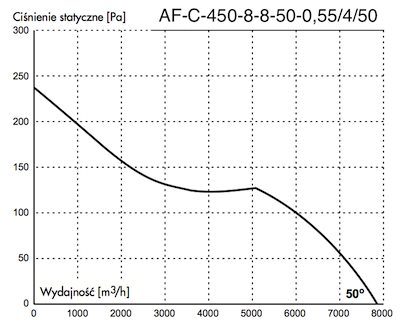

AF-C-450-8-8-50-0,55/4/50 (230V)

Model	AF-C-450-8-8-50-0,55/4/50 (230V)
Rotational speed	1350 rpm
Performance	7910 m3/h
Power	0,55 kW
Current	4,0 A
IP	66
Max. operating temperature	60 °C
Mass	23 kg
Acoustic pressure SPL	69 dB(A)
Acoustic power Lw	80 dB(A)
Type of regulator	SPA-5
Net price	295 €

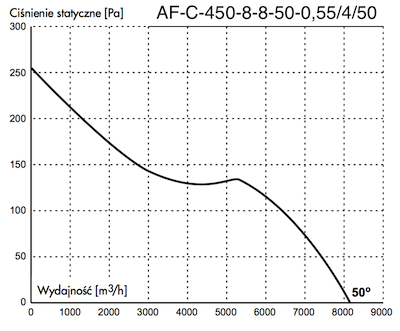

AF-C-450-8-8-50-0,55/4/50

Model	AF-C-450-8-8-50-0,55/4/50
Rotational speed	1400 rpm
Performance	8200 m3/h
Power	0,55 kW
Current	1,3 A
IP	66
Max. operating temperature	60 °C
Mass	222 kg
Acoustic pressure SPL	70 dB(A)
Acoustic power Lw	81 dB(A)
Type of regulator	FT-2,1 / FJ-3,5
Net price	285 €

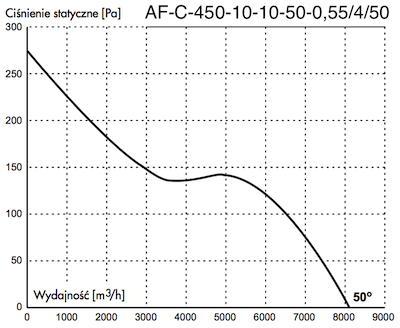

AF-C-450-10-10-50-0,55/4/50 (230V)

Model	AF-C-450-10-10-50-0,55/4/50 (230V)
Rotational speed	1350 rpm
Performance	8130 m3/h
Power	0,55 kW
Current	4,0 A
IP	66
Max. operating temperature	60 °C
Mass	23 kg
Acoustic pressure SPL	70 dB(A)
Acoustic power Lw	81 dB(A)
Type of regulator	SPA-5
Net price	309 €

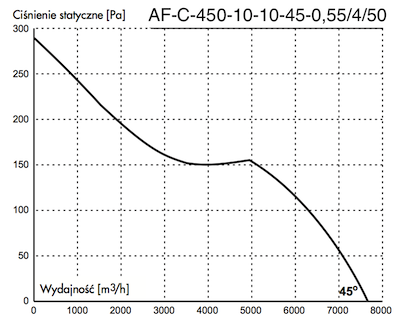

AF-C-450-10-10-45-0,55/4/50

Model	AF-C-450-10-10-45-0,55/4/50
Rotational speed	1400 rpm
Performance	7750 m3/h
Power	0,55 kW
Current	1,3 A
IP	66
Max. operating temperature	60 °C
Mass	22 kg
Acoustic pressure SPL	69 dB(A)
Acoustic power Lw	80 dB(A)
Type of regulator	FT-2,1 / FJ-3,5
Net price	298 €

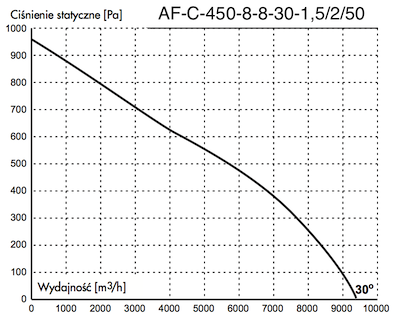

AF-C-450-8-8-30-1,5/2/50

Model	AF-C-450-8-8-30-1,5/2/50
Rotational speed	2800 rpm
Performance	9500 m3/h
Power	1,5 kW
Current	3,3 A
IP	66
Max. operating temperature	60 °C
Mass	27 kg
Acoustic pressure SPL	73 dB(A)
Acoustic power Lw	84 dB(A)
Type of regulator	FT-4,1 / FJ-6,0
Net price	310 €

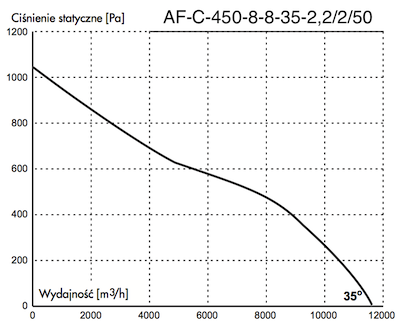

AF-C-450-8-8-35-2,2/2/50

Model	AF-C-450-8-8-35-2,2/2/50
Rotational speed	2800 rpm
Performance	11700 m3/h
Power	2,2 kW
Current	4,8 A
IP	66
Max. operating temperature	60 °C
Mass	31 kg
Acoustic pressure SPL	78 dB(A)
Acoustic power Lw	89 dB(A)
Type of regulator	FT-5,4 / FJ-9,6
Net price	333 €

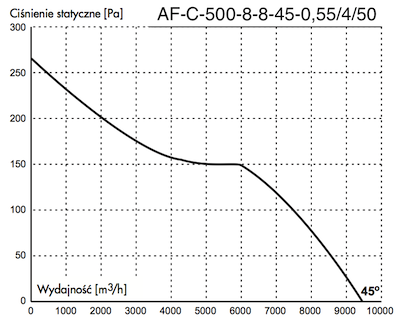

AF-C-500-8-8-45-0,55/4/50 (230V)

Model	AF-C-500-8-8-45-0,55/4/50 (230V)
Rotational speed	1350 rpm
Performance	9470 m3/h
Power	0,55 kW
Current	4,0 A
IP	66
Max. operating temperature	60 °C
Mass	29 kg
Acoustic pressure SPL	69 dB(A)
Acoustic power Lw	80 dB(A)
Type of regulator	SPA-5
Net price	312 €

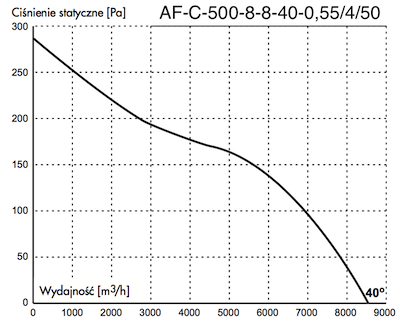

AF-C-500-8-8-40-0,55/4/50

Model	AF-C-500-8-8-40-0,55/4/50
Rotational speed	1400 rpm
Performance	8620 m3/h
Power	0,55 kW
Current	1,3 A
IP	66
Max. operating temperature	60 °C
Mass	30 kg
Acoustic pressure SPL	67 dB(A)
Acoustic power Lw	78 dB(A)
Type of regulator	FT-2,1 / FJ-3,5
Net price	302 €

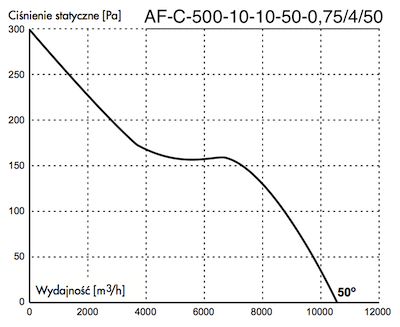

AF-C-500-10-10-50-0,75/4/50 (230V)

Model	AF-C-500-10-10-50-0,75/4/50 (230V)
Rotational speed	1350 rpm
Performance	10500 m3/h
Power	0,75 kW
Current	5,1 A
IP	66
Max. operating temperature	60 °C
Mass	29 kg
Acoustic pressure SPL	72 dB(A)
Acoustic power Lw	83 dB(A)
Type of regulator	SPA-10
Net price	329 €

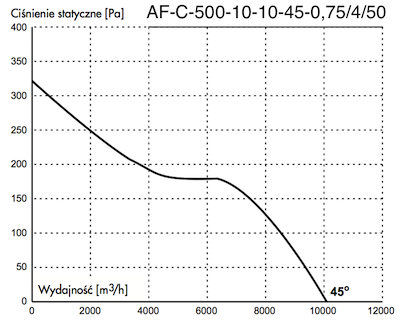

AF-C-500-10-10-45-0,75/4/50

Model	AF-C-500-10-10-45-0,75/4/50
Rotational speed	1400 rpm
Performance	10100 m3/h
Power	0,75 kW
Current	2,2 A
IP	66
Max. operating temperature	60 °C
Mass	30 kg
Acoustic pressure SPL	71 dB(A)
Acoustic power Lw	82 dB(A)
Type of regulator	FT-4,1 / FJ-6,0
Net price	323 €

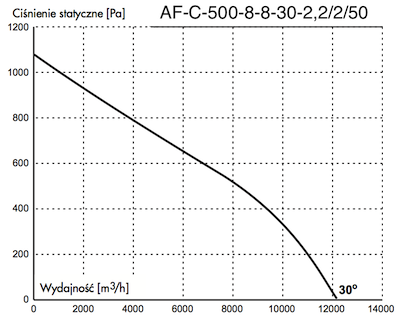

AF-C-500-8-8-30-2,2/2/50

Model	AF-C-500-8-8-30-2,2/2/50
Rotational speed	2800 rpm
Performance	12300 m3/h
Power	2,2 kW
Current	4,8 A
IP	66
Max. operating temperature	60 °C
Mass	31 kg
Acoustic pressure SPL	75 dB(A)
Acoustic power Lw	86 dB(A)
Type of regulator	FT-5,4 / FJ-9,6
Net price	350 €

AF-C-500-8-8-35-3/2/50

Model	AF-C-500-8-8-35-3/2/50
Rotational speed	2800 rpm
Performance	15100 m3/h
Power	3,0 kW
Current	6,9 A
IP	66
Max. operating temperature	60 °C
Mass	35 kg
Acoustic pressure SPL	80 dB(A)
Acoustic power Lw	91 dB(A)
Type of regulator	FT-6,9
Net price	368 €

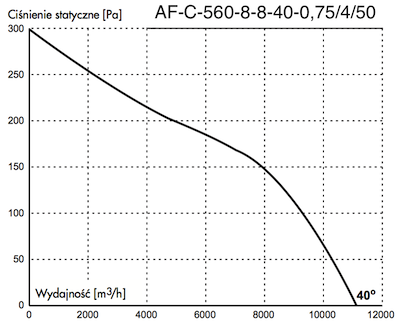

AF-C-560-8-8-40-0,75/4/50

Model	AF-C-560-8-8-40-0,75/4/50
Rotational speed	1400 rpm
Performance	11200 m3/h
Power	0,75 kW
Current	2,2 A
IP	66
Max. operating temperature	60 °C
Mass	33 kg
Acoustic pressure SPL	69 dB(A)
Acoustic power Lw	80 dB(A)
Type of regulator	FT-4,1 / FJ-6,0
Net price	319 €

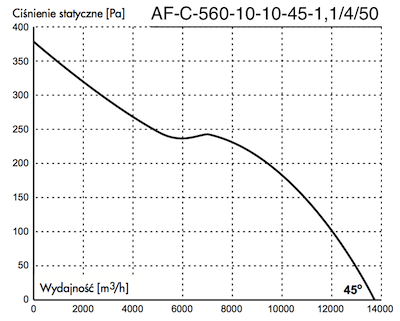

AF-C-560-10-10-45-1,1/4/50

Model	AF-C-560-10-10-45-1,1/4/50
Rotational speed	1400 rpm
Performance	13800 m3/h
Power	1,1 kW
Current	3,0 A
IP	66
Max. operating temperature	60 °C
Mass	34 kg
Acoustic pressure SPL	74 dB(A)
Acoustic power Lw	85 dB(A)
Type of regulator	FT-4,1 / FJ-6,0
Net price	353 €

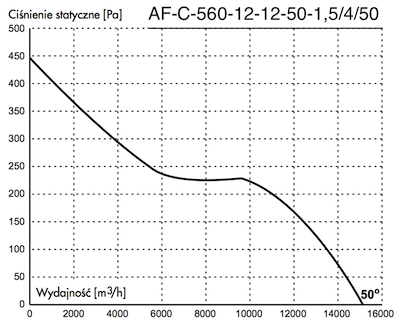

AF-C-560-12-12-50-1,5/4/50

Model	AF-C-560-12-12-50-1,5/4/50
Rotational speed	1400 rpm
Performance	15200 m3/h
Power	1,5 kW
Current	3,9 A
IP	66
Max. operating temperature	60 °C
Mass	36 kg
Acoustic pressure SPL	76 dB(A)
Acoustic power Lw	87 dB(A)
Type of regulator	FT-5,4 / FJ-9,6
Net price	375 €

AF-C-630-12-12-45-0,55/6/50 (230V)

Model	AF-C-630-12-12-45-0,55/6/50 (230V)
Rotational speed	900 rpm
Performance	12200 m3/h
Power	0,55 kW
Current	3,9 A
IP	66
Max. operating temperature	60 °C
Mass	35 kg
Acoustic pressure SPL	67 dB(A)
Acoustic power Lw	78 dB(A)
Type of regulator	SPA-5
Net price	403 €

AF-C-630-12-12-45-0,55/6/50

Model	AF-C-630-12-12-45-0,55/6/50
Rotational speed	900 rpm
Performance	12200 m3/h
Power	0,55 kW
Current	2,3 A
IP	66
Max. operating temperature	60 °C
Mass	35 kg
Acoustic pressure SPL	67 dB(A)
Acoustic power Lw	78 dB(A)
Type of regulator	FT-4,1 / FJ-6,0
Net price	348 €

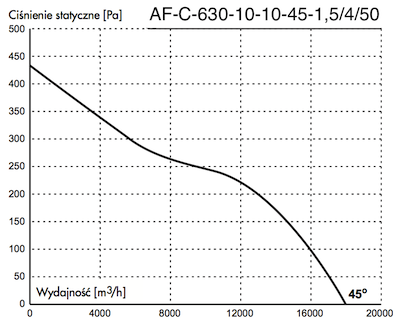

AF-C-630-10-10-45-1,5/4/50

Model	AF-C-630-10-10-45-1,5/4/50
Rotational speed	1400 rpm
Performance	18100 m3/h
Power	1,5 kW
Current	4,3 A
IP	66
Max. operating temperature	60 °C
Mass	39 kg
Acoustic pressure SPL	75 dB(A)
Acoustic power Lw	86 dB(A)
Type of regulator	FT-5,4 / FJ-9,6
Net price	417 €

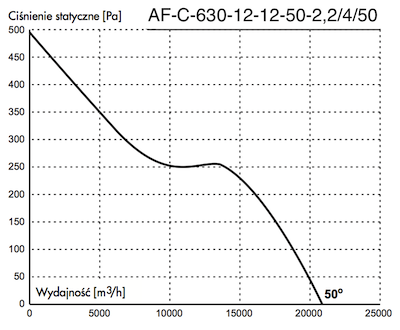

AF-C-630-12-12-50-2,2/4/50

Model	AF-C-630-12-12-50-2,2/4/50
Rotational speed	1400 rpm
Performance	21000 m3/h
Power	2,2 kW
Current	5,8 A
IP	66
Max. operating temperature	60 °C
Mass	43 kg
Acoustic pressure SPL	79 dB(A)
Acoustic power Lw	90 dB(A)
Type of regulator	FT-6,9
Net price	415 €
